HomeShopExhaustMaxus Deliver 9 2019-2024 Exhaust System

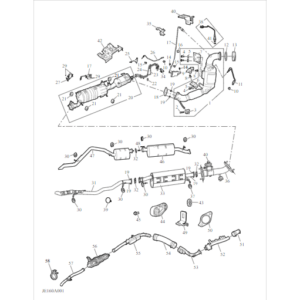

Image ReferenceSKUDescriptionPrice
1C00218915 /12391Asm-Frt Converter£854.45
1C00228951 /12393Asm-Frt Converter£817.08
2C00003686 /12398Bolt-Ctltc Hngr Brkt To Frm£1.20
3C00117642 /12399Rubber Shackle-Frm To Exh(Ht)£24.78
4C00107705 /12400Bolt-Frt Exh Pp Brkt£13.85
7C00088107 /12401Bracket-Frt Exh Asm£34.42
8B00004090 /12402Bolt-Frt Exh Pp Brkt£0.48
9C00117641 /12403Bracket-Frt Exh Asm£13.85
11C00088306 /12405Sensor-Tmp T4£71.93
11C00215105 /12406Sensor-Tmp T6 TEMP-SENSOR£54.91
11C00437643 /12408Sensor-Tmp£64.91
12C00103111 /12410Gasket-Ctltc To Turbo£5.89
12C00228956 /12411Gasket-Ctltc To Turbo£5.89
13C00103109 /12413Clamp-Ctltc To Turbo£25.82
13C00228955 /12414Clamp-Ctltc To Turbo£25.15
14B00003510 /12415Bolt-Nox Sen£0.36
15C00040010 /12416Clip-Oxy Sen Harn£0.71
16B00004151 /12417Clip-Nox Sen Harn£0.71
16C00040010 /12418Clip-Nox Sen Harn£0.71
16C00050531 /12419Clip-Nox Sen Harn£1.56
17C00088304 /12420Nox Sensor Harness length400mm£474.23
17C00124885 /12423Nox Sensor Harness length400mm£558.94
17C00222344 /12424Nox Sensor Harness length600mm£508.09
17C00270698 /12425Nox Sensor Harness length600mm£573.50
17C00324241 /12426Nox Sensor Harness length400mm£432.59
17C00324242 /12427Nox Sensor Harness length600mm£432.59
18C00088108 /12428Washer-Catalyst Asm£6.60
18C00228957 /12429Washer-Catalyst Asm£9.70
19B00004040 /12430Nut-Muff Asm£0.29
19B00004040 /12431Nut-Catalyst Asm£0.29
20C00312975 /12437Asm-Rr Converter£2,133.86
20C00313925 /12438Asm-Rr Converter£2,159.04
21C00088110 /12439Rubber Shackle-Frm To Exh(Ht)£24.78
22C00026018 /12441Clip-Press Sen Tb£0.92
22C00325450 /12442Clip-Press Sen Tb£1.21
23C00218906 /12443Pipe Asm-Press Sen£65.50
23C00228953 /12444Pipe Asm-Press Sen£12.04
24C00218907 /12445Pipe Asm-Press Sen£70.85
24C00228954 /12446Pipe Asm-Press Sen£13.26
26C00088307 /12448Sensor-Tmp D20;T5£67.26
27C00088305 /12451Sensor-Pm£410.47
29B00003507 /12452Nuts-Press Sen Brkt£0.24
29B00003507 /12453Nut-Nox Sen£0.24
30C00218764 /12455Hanger-Exh Muff Rub£19.81
31C00165627 /12457Pipe-Exh Tail£125.41
32C00088203 /12460Washer-Muff Asm£7.88
33C00165508 /12462Muffler Asm£235.43
33C00165647 /12465Muffler Asm£225.04
34C00088303 /12472Sensor-Press£81.05
36C00237904 /12475Pipe Asm-Frt Exh Frt£105.83
38C00088309 /12476Sensor-Oxy£166.87
39B00004151 /12477Strap-Exh Pp(Ht)£0.71
42C00247985 /12479Heat Shield-Exh£25.31
48B00004040 /12480Nut-Muff Asm£0.29
50C00086307 /12481Gasket-Egr Clr£1.07
50C00086307 /12482Gasket-Lp Egr Inlet Pipe To Exh£1.07

Description

Maxus Deliver 9 2019-2024 Exhaust System

Ensure a perfect fit for your vehicle by providing your registration or VIN at checkout. This guarantees that the Maxus Parts you’ve chosen will match your vehicle, ensuring optimal performance and satisfaction with your purchase.

Shop confidently with genuine Maxus Parts, knowing that each component is authentic. Our dedication to providing genuine parts ensures reliability and quality with every purchase.

If you’re unable to find what you need, don’t worry! Contact our team of Maxus Parts Specialists for assistance in locating the exact components your vehicle requires. Simply get in touch here, and let our experts guide you to the perfect solution.

Additional information

Image Reference

1, 2, 3, 4, 7, 8, 9, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 29, 30, 31, 32, 33, 34, 35, 36, 38, 39, 41, 42, 48, 50

Compatible vehicles

MakeModelYearEngineTrim
MaxusDeliver 92019-2024D20 2.0TAll
